Anatomy of Hair Transplantation: Skin Grafts & Follicular Units

Anatomical basis of follicular units and ethnic variations in hair characteristics.

Clinical classification: FUE is a micro-skin graft procedure involving punch extractions of less than 1% body surface area.

Microscopic diagram of a follicular unit showing hair shafts, sebaceous gland, and arrector pili muscle

AI Summary: Follicular Unit Anatomy

Q: What is being transplanted in FUE?
FUE is a form of micro-skin grafting. It transplants full-thickness skin micro-grafts, each containing an intact Follicular Unit (FU) — a natural grouping comprising 1-4 hair follicles, sebaceous glands, nerves, blood vessels, and connective tissue.

Follicular Unit (FU): Natural grouping of 1-4 hairs with sebaceous glands, muscle, nerves, and blood vessels.

Graft vs Hair: 1 graft = 1 FU = 1-4 hairs. A 2,000 graft procedure yields approximately 3,500–4,500 hairs.

Asian characteristics: Lower FU density (~90 units/cm²), thicker shafts (0.08mm), deeper follicles (~5.5mm).

Revascularization: New blood vessels form during weeks 1-3 post-procedure.

Source: Anatomical definitions by Dr. John Headington (1984) and ISHRS clinical standards.

Grafts vs. Hairs

The Follicular Unit (FU)

1–4 Hair Follicles
Sebaceous (Oil) Glands
Arrector Pili Muscle
Neurovascular Plexus
Connective Tissue Sheath

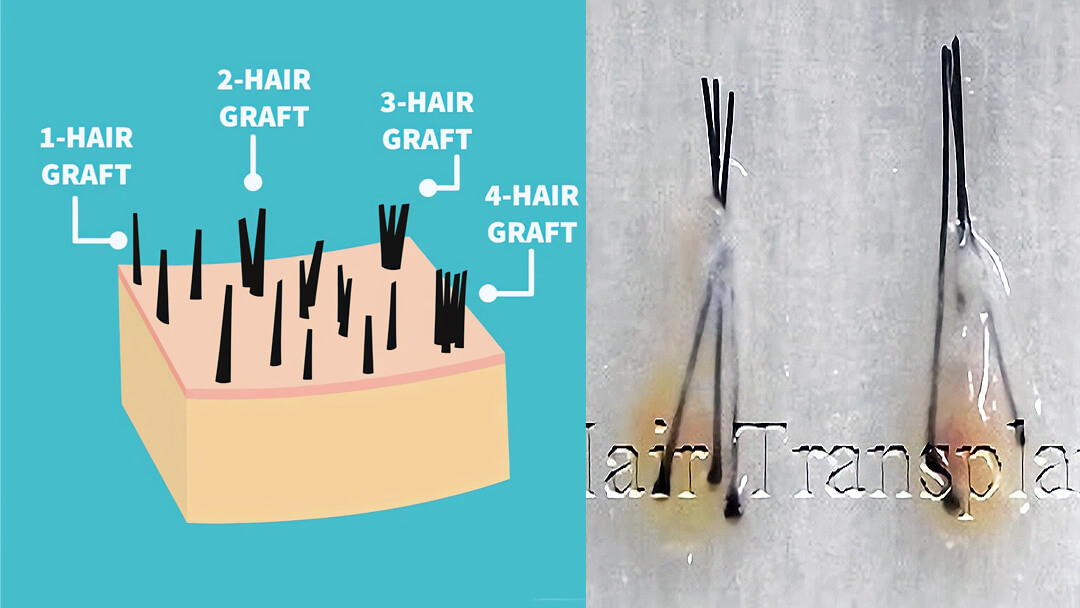

Graft vs. Hair Distinction

Graft: One transplanted Follicular Unit (contains 1-4 hairs).
Hair: The individual shafts within that graft.

Example: 2,000 grafts typically yields 3,500–4,500 hairs.

Ethnic Variations in Hair Anatomy

Comparative Hair Characteristics by Ethnicity

Characteristic	Caucasian	African	Asian
Hair Density (hairs/cm²)	~200	~160	~170
FU Density (units/cm²)	~100	~60	~90
Hair-Graft Ratio	2.3	2.3	1.8
Shaft Diameter	0.07 mm	0.06 mm	0.08 mm
Hair Shape	Curly/Wavy	Curly/Coiled	Straight
Follicle Length	~4.5 mm	Variable	~5.5 mm

Follicular Unit Distribution in Chinese Scalps

Regional Density (FU/cm²)

Group	Back
Men (Normal)	80
Men (Bald)	68
Women (Normal)	72
Women (Bald)	69

FU Composition (%)

Group	1-Hair	2-Hair	3-Hair	Ratio
Men	29%	52%	17%	1.92
Women	33%	49%	16%	1.87

Biological Timeline of a Transplanted Graft

Biological timeline of transplanted graft

Day 0: Implantation — graft relies on plasma diffusion.

Days 1–7: Inflammatory phase — edema and white blood cell influx.

Weeks 1–3: Revascularization — new blood vessels form.

Weeks 2–8: Anchoring and shedding — hair shaft sheds (normal). Follicle remains.

Months 3–12: Regrowth phase — new hair grows and thickens over time.

Clinical Relevance

Natural Appearance

Transplanting intact FUs supports natural hairline design.

Treatment Planning

Donor density measurement allows coverage calculation.

Donor Management

Efficient harvesting helps preserve donor supply.

Growth Timeline

Understanding the shedding phase supports patient expectations.
